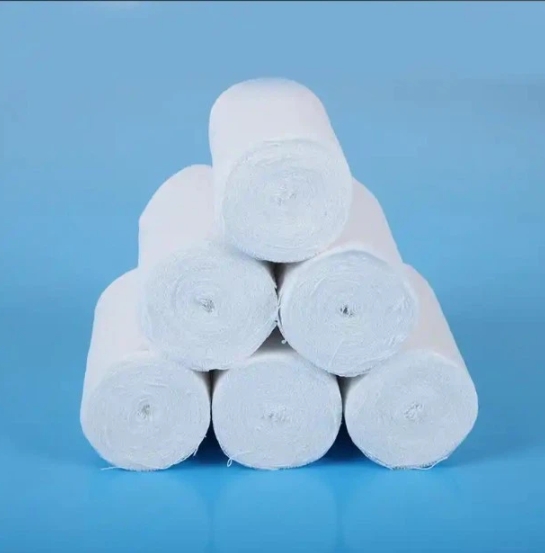

Gauze folding rewinding machine is a dedicated equipment for producing gauze folded in half, three folds, and four folds. The finished gauze folded in half can be used as a gauze roll, mainly used in medical places such as surgery and burns.

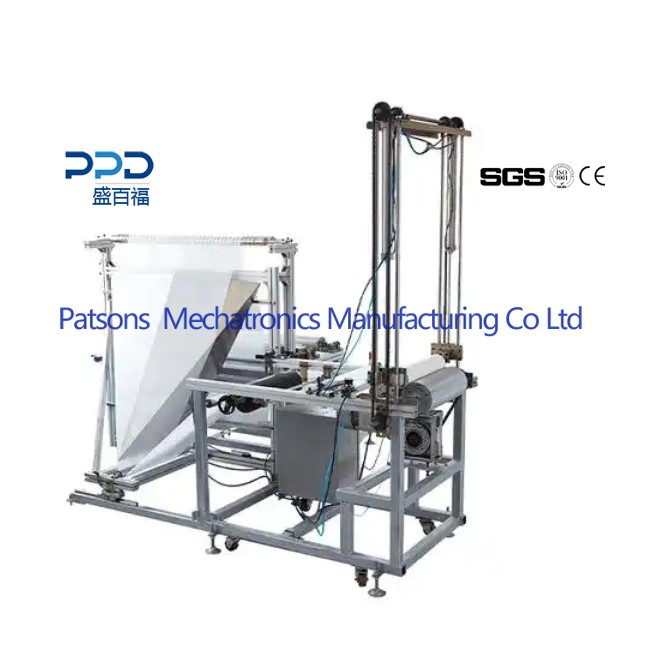

Gauze folding rewinding machine is a device composed of a material unwinding rack, a folding rack, and a material receiving rack.
Machine is easy to operate, after reaching the setting meter , it stops automatically. At this time, turn the manual valve upward to make the cylinder upwardly detach from the stainless steel mandrel, take out the rolled gauze roll, and then put another stainless steel mandrel on the two flower rollers. Use scissors to cut off one end of the rolled gauze roll, and wrap the other end on the second mandrel.
Place the mandrel inside the rolled gauze roll in the core pulling cylinder clip, and step on the foot switch to complete the core pulling. Then press the reset button, the main machine starts, and the cycle is done.
Features
1. Machine is equipped with an inflatable shaft and an air brake tensioner to facilitate the adjustment of the tightness of the gauze roll.
2. The neatness of the fold can be adjusted by adjusting the handwheel and the button left and right.
3. Fast folding speed, simple and convenient operation.
Technical Data:
Name: Gauze Folding Rewinding machine
Machine model: PPD-GFR900
Raw material width: max900 mm
Raw material outer diameter: max700 mm
Folding method: 2 folds
Number of layers: 4 layers
Product width: 220 mm
Product length: 10 meters (option)
Speed: max150m/min
Power: 2.2 kw
Voltage: 380V,50Hz,3PH
