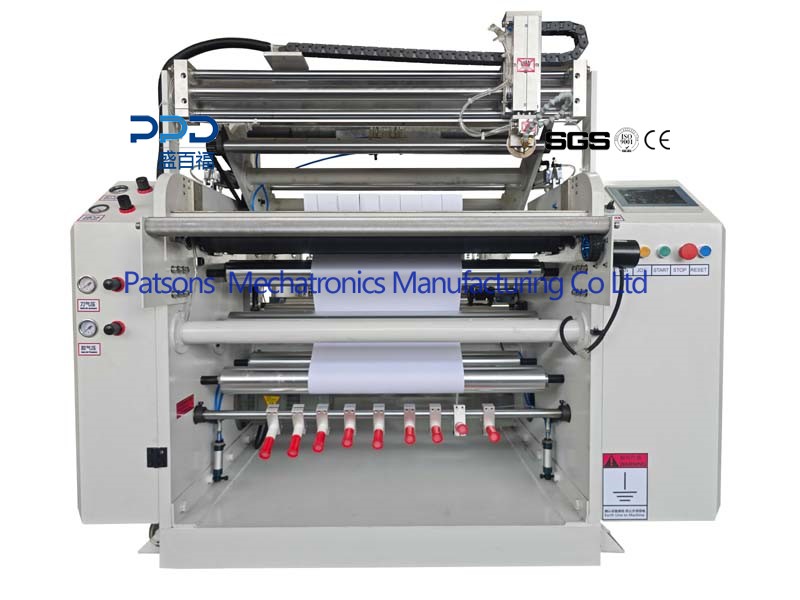

Cash Register Paper Roll Slitter With AutoTail Cutting&Gluing

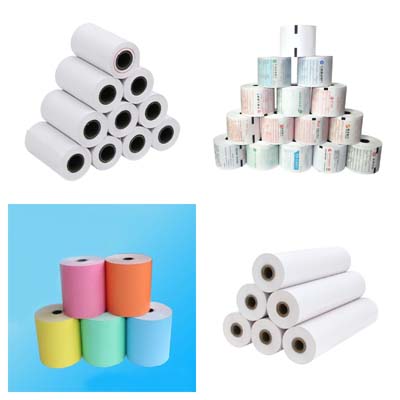

Cash register paper roll slitter with auto tail cutting&gluing is mainly suitable for slitting all kinds of thermal paper, including fax paper, cash register paper, ATM paper, medical record paper, POS paper etc.
The auto tail cutting&gluing device greatly improves the degree of automation and reduces manual operations.
Features:
1.Machine comes with an automatic paper folding and inserting system.
2.The touch screen PLC control system is utilized for control of its electrical components.
3.Automatic unwinding and automatic tension control can be achieved through programming.
4.Automatic marking red Line:Set up the red line length in the touch screen. When reach the setting length,it will be in the red line automatically.
5.Automatic tail cutting and automatic gluing device, which can save the labor cost a lot.
Main Data：
Name:Cash Register Paper Roll Slitter With Auto Tail Cutting&Gluing
Model:PPD-ACG900
Parent web width:max900mm
Parent web ID:76mm
Parent web OD:max1000mm
Slitting rewinding width:57mm,80mm or option
Slitting rewinding ID:12.7mm/15mm or option
Slitting rewinding OD:max160mm
Speed:0-168m/min
Voltage:380V,50Hz
The auto tail cutting&gluing device greatly improves the degree of automation and reduces manual operations.
Features:
1.Machine comes with an automatic paper folding and inserting system.
2.The touch screen PLC control system is utilized for control of its electrical components.
3.Automatic unwinding and automatic tension control can be achieved through programming.
4.Automatic marking red Line:Set up the red line length in the touch screen. When reach the setting length,it will be in the red line automatically.
5.Automatic tail cutting and automatic gluing device, which can save the labor cost a lot.
Main Data：
Name:Cash Register Paper Roll Slitter With Auto Tail Cutting&Gluing
Model:PPD-ACG900
Parent web width:max900mm
Parent web ID:76mm
Parent web OD:max1000mm
Slitting rewinding width:57mm,80mm or option
Slitting rewinding ID:12.7mm/15mm or option
Slitting rewinding OD:max160mm
Speed:0-168m/min
Voltage:380V,50Hz
