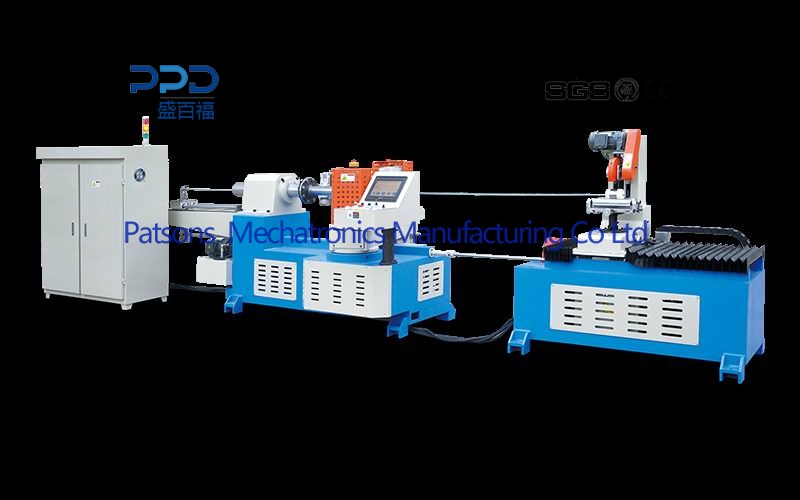

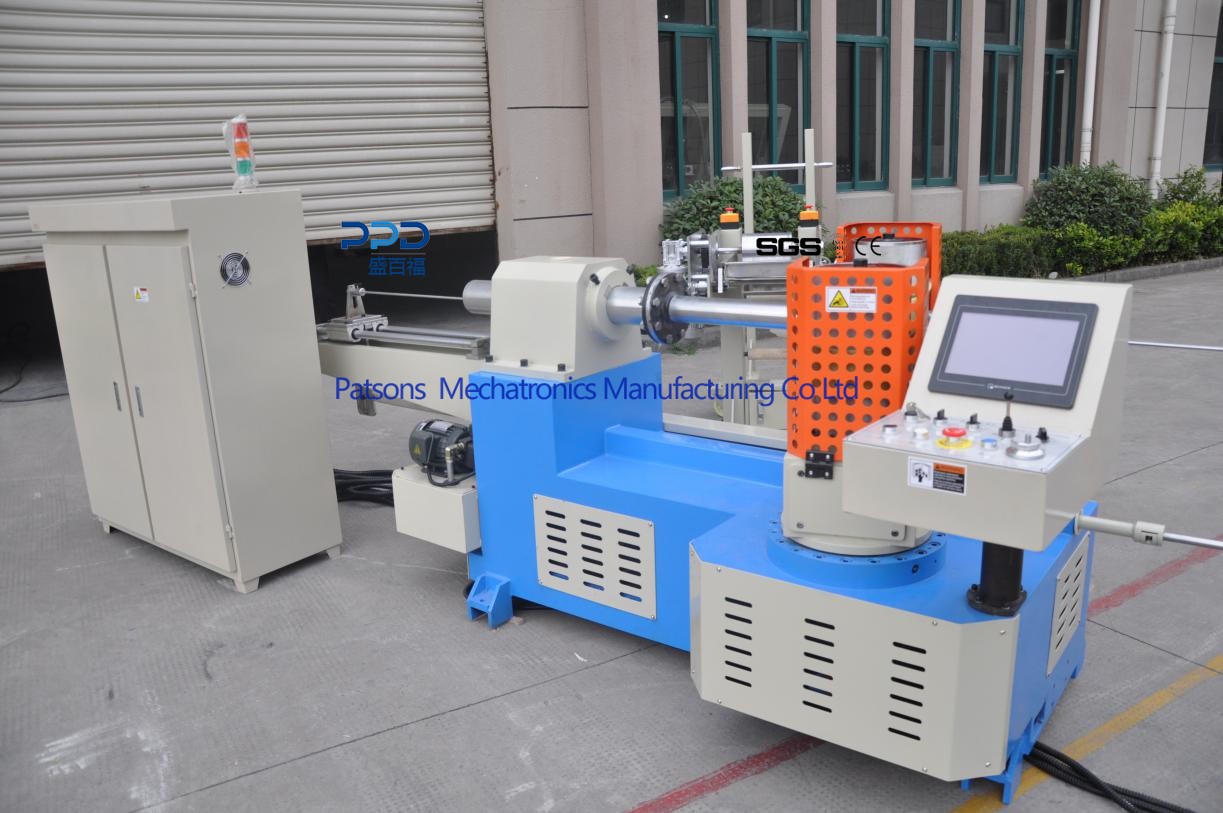

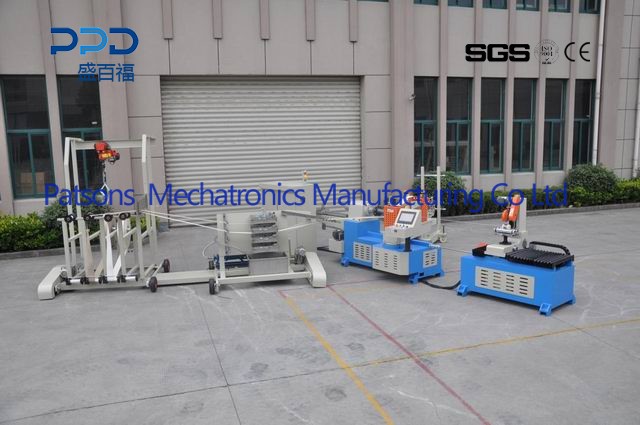

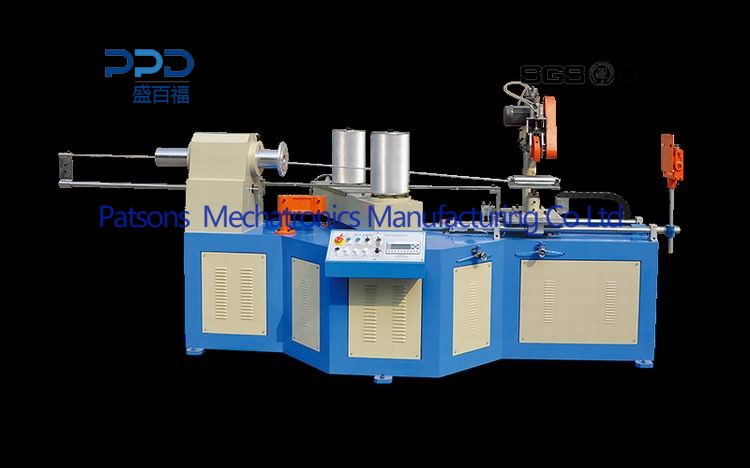

Automatic high speed small paper tube forming machine

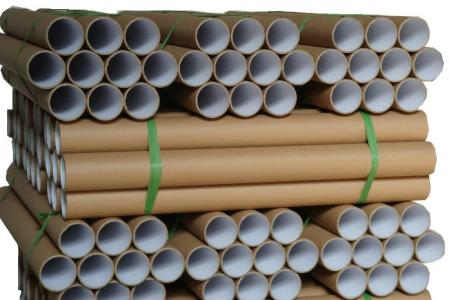

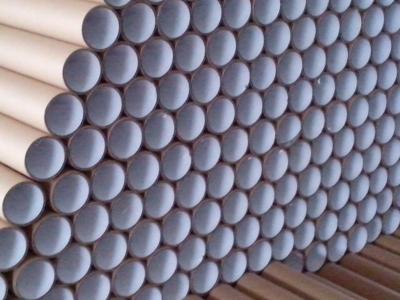

PPD-50H High speed automatic control small paper tube forming machine is ideal for high speed production for small diameter of paper tube,it is at high speed of 30meter per minute,low noisy,compact in size,less power consumption needed.widely used for different industry of paper tube use:  Chemical Fiber paper tube、All kinds of packaging paper can、 All kinds of small industrial paper core.  model can produce spiral paper tube with gluing ,winding, cutting together on.
Such as cling film roll ,aluminium foil roll,plastic roll,paper roll,textile,non woven roll etc.
Machine adopts premium PLC HMI programmer,the operator is only to input the paper tube data into the touch sceen.
Automatic gluing,forming,and cutting.

Function:

Advanced "H" series of paper tube machine ,designing idea: simple、compact、stable.

Standard for making paper tube 3ID76.5), Max wall thickness under 5MM, biggest tube ID can up to 100MM.



Features:

1. Main structure made by thicker steels which are finished  by processing of re-cutting and welding,  make machine much more stable and strong.

2. Main transmission adopt gear speed cut, low-noise, low-heating, high revolution, high torque.

3. Main motor adopt Vectorial high torque inverter speed adjusting.

4. Equipped with Hydraulic device to adjust belt tension, with belt tension sensor and belt angle sensor, both can be adjusted automatically.

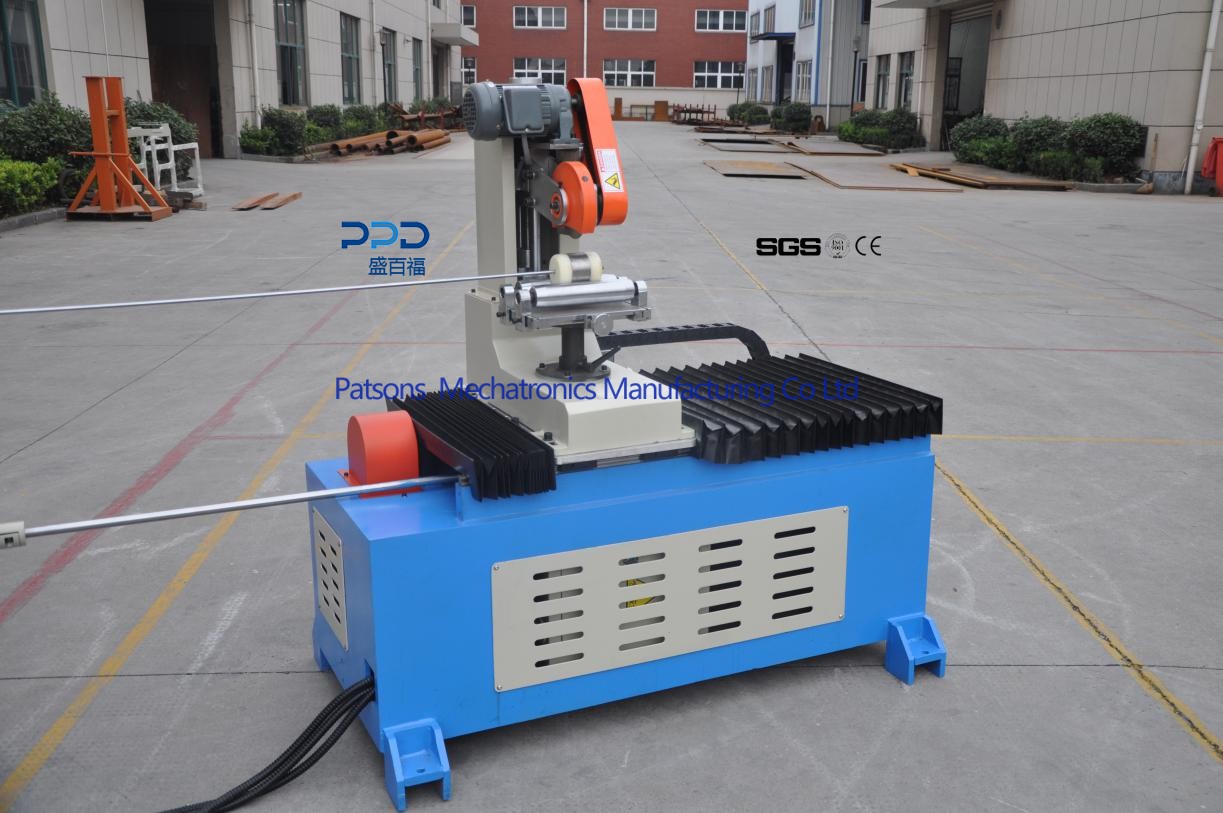

5. Equipped with synchronous cutting system, cutting table adopt high precision ball screw and high performance server motor drive.

6. Equipped pulse length fixation control, cooperated with front feedback compensation function, can make sure the same length in different producing speed.

7. Adopt double PLC control systems, IO output control and functional operation control separately, to increase cutting reaction speed, cutting length is much more accurate.

8. Equipped with new control panel and big size colorful main machine touching interface .

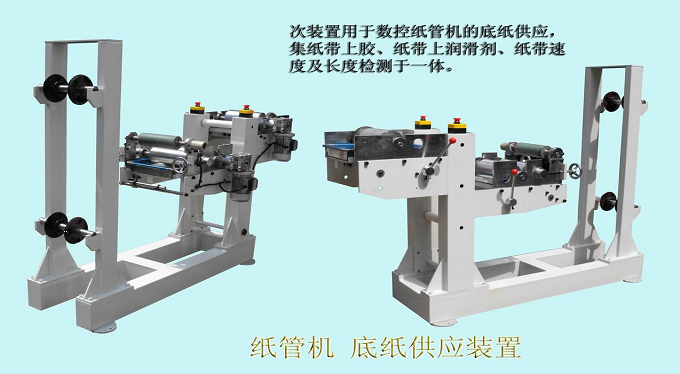

9. with multi functional bottom paper feeding device, will stop once paper break.

10. Equipped with integral paper reel stand, glue stand, paper feeding assembly, all are electrical control.

11. Design of modularization electric layout makes usemaintaining and repairing more convenient and scientific.



Detail:





Model

High speed automatic  control Paper tube machine PPD-50H

Technical parameter

Wheel hub driving

2 wheels

Number of roll paper

3-8 plies

Cutting  motor

1.3kw Taiwan (Wanxin) motor

Max-diameter

100mm

bearing

HRB

Min-diameter

10mm

Control  system

Max-thickness

5mm

Controller

PLC Delta 28sv

Min-thickness

1mm

Man-machine interface

We!view6070T

Rolling core matrix fixed way

Franc fixation

Program edition

JS-NC 4.2

Rewinding noses

Double noses single belt

Inverter

YASKAWA 5.5KW

Cutting way

Single circular blade

Actuator

CHNT

Gluing way

Double sides

Signal component

Omron

Fixed length way

Infrared/encoder

Pneumatic  component

Airtac

operator

1-2 person

Angle adjusting motor

Hangzhou

Productive speed

3-30m/min

synchronized control

Servo

Speed regulation control

Inverter

Synchronized follow system

Have

Power input

3*380V 50Hz

Outfit assemble

Size (mm)





Mainframe size:

L*W*H

5500*1700*2000mm

Auto finished tube holder

Have

Area space: L*W

16000*7500mm

Angle of belt

Auto

Wheel hub diameter

215mm

Belt adjust

Auto

Wheel hub height

400mm

Scraping glue way

Double side

Min-tread

750mm

Stop when paper without

have

Max-tread

950mm

Auto giving glue

Screw pump 1.5KW

Total weight

About 3900kg

Auto giving lubricating oil

Auto

Drive system

Tension control

Can choose

Main power

5.5 KW

Type of paper reel stand

integral

Hub output strength

1400N.M

belt

Have

Hub max speed

75r/min

Enclosed component

 Drive model

Gear and chain

Shaft

1

Reductor  type

WPO155

Air compressor

--

Driving chain type

12A*2

Useful tool

have





Winding belt

2
