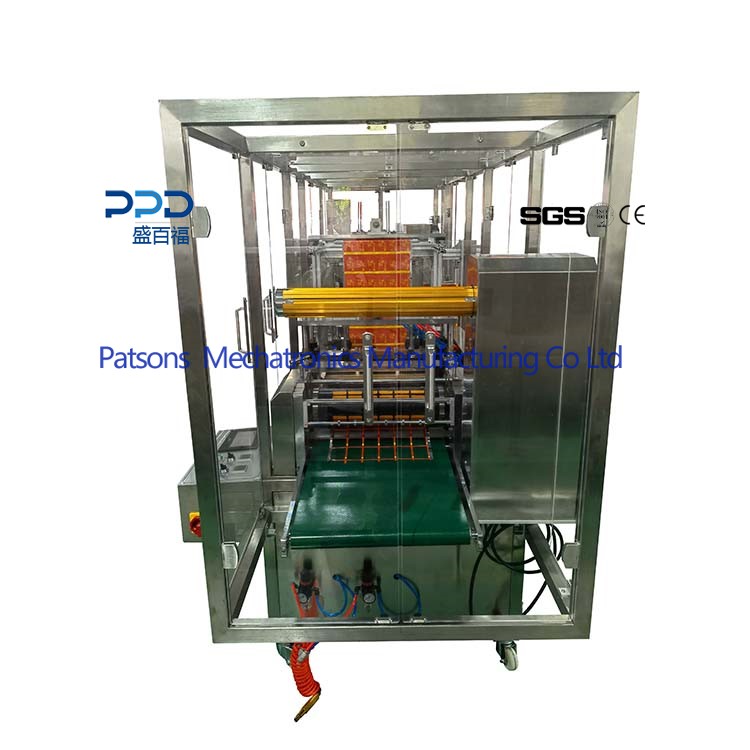

Automatic 6 lanes oral film flash release strips packaging machine is an automated packaging equipment specifically designed for new health foods such as oral films and flash release strips. Its core advantage lies in its six parallel conveyor systems, which can simultaneously complete the film feeding, loading, heat sealing, and die-cutting of six rows of products, maximizing production capacity while ensuring the utmost care for fragile and vulnerable oral film products during the packaging process.

Features:

1. Low-tension film conveying system: Precisely controls the tension of the packaging film (cover and bottom film), avoiding stretching and deformation.

2. Uniquely designed film feeding mechanism: The slicing of the dispensing film is directly fed into the packaging bag, ensuring stability and reliability and avoiding problems that may occur during secondary transfer.

3. Scientifically stable heat sealing mechanism: Continuous, flat-pressure heat sealing, reciprocating operation. Adjustable heat sealing time results in better heat sealing effects; wider adaptability to packaging materials and thicknesses.

4. Integrated longitudinal slitting system for dispensing film, enabling online slitting.

5. Most contact parts of the equipment are made of stainless steel, meeting GMP requirements.

Main Data:

Name: Automatic 6 Lanes Oral Film  Flash Release Strips Packaging Machine

Model: PPD-ODFP240

Film size: Length 30 mm × Width 25 mm (or as customized size)

Bag size: Length 85 mm × Width 45 mm (customized size,adjustable with mold replacement)

Processing sapacity: 180-240 bags/min

Packaging Film Material: Easy-open film and other heat-sealable composite packaging film, OD≤320mm, Width≤600mm

Voltage: 220V,50Hz

Power: Motor 4kw, Heating kw

Pressure: 0.6-0.8Mpa
