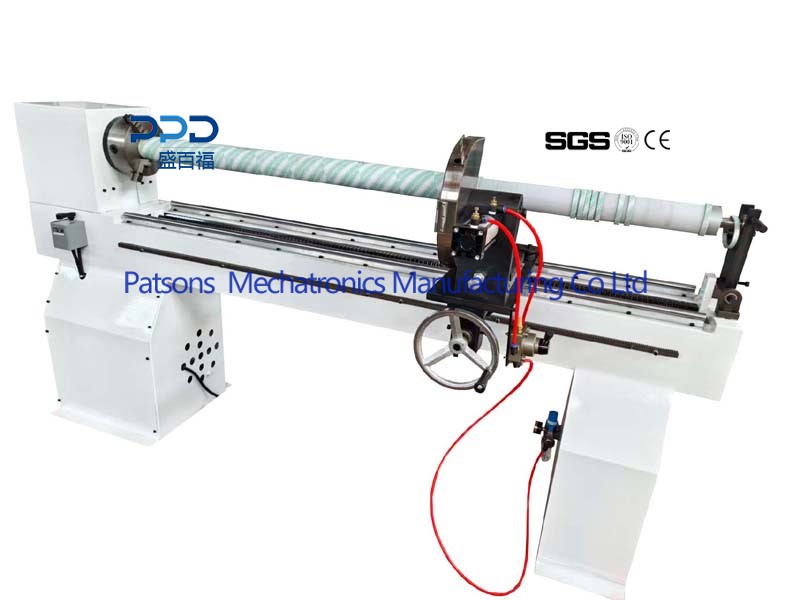

Semi auto tape cutting machine is a device designed to slit wide rolls of tape into narrower strips of specified widths through manual operation. The machine mounts the large roll onto a rotating spindle, while the operator manually advances the cutting blade to perform the cut.
Features:
1. Single shaft,pneumatic circular blade feed, capable of slitting rolls with diameters up to 180mm.
2. Produces clean, smooth cut edges.
3. Manual positioning with a six-sided indexing shaft for stop settings; simple to operate.
Main Data:
Name: Semi Auto Tape Cutting Machine
Model: PPD-STCM1300
Effective/Unwinding Width: Max. 1300mm
Cutting Width Range: 3mm – 1300mm
Max. Cutting Diameter: 180mm
Paper Core Inner Diameter: 1-3inch option
Slitting Precision: ±0.1mm
Power: 2.2kw
Voltage: 220/380V, 50Hz
