Povidone iodine gauze dressing packaging machine integrates liquid impregnation/coating, drying, cutting, pouch forming, and packaging into a single production line.

Features:

1. Machine utilizes a full servo drive system and PLC for intelligent control, enabling continuous, automated production from raw materials to finished products.

2. Four-side sealing/pouch-forming system: Compatible with various packaging materials, such as paper-film, paper-paper, or aluminum-plastic composite films.

3. Independent guide-post style heat-sealing molds and a mobile synchronous sealing system ensure uniform sealing temperatures; this is particularly suitable for medical dressings, which require high sealing integrity.

Process Flow:

1. Loading of gauze roll (90mm) onto the machine, trim edges (waste edge rewinding), cut to 60mm width → Soak in liquid (heating function included; adjustable 40–100°C) → Oven drying → Cut into 60x60mm pieces; 2. Simultaneously, load adhesive tape onto the machine → Peel off backing paper → 3. Bond 60x60mm gauze to PU adhesive tape (simultaneously dispense liquid onto gauze; controllable volume) → Fold and laminate left and right release papers → 4. Die-cut outer shape → 5. Insert dressing into pouch → Automatic pouch making, sealing, and packaging → Finished product output

Main Data:

Name: Povidone Iodine Gauze Dressing Packaging Machine

Model: PPD-PIGD60

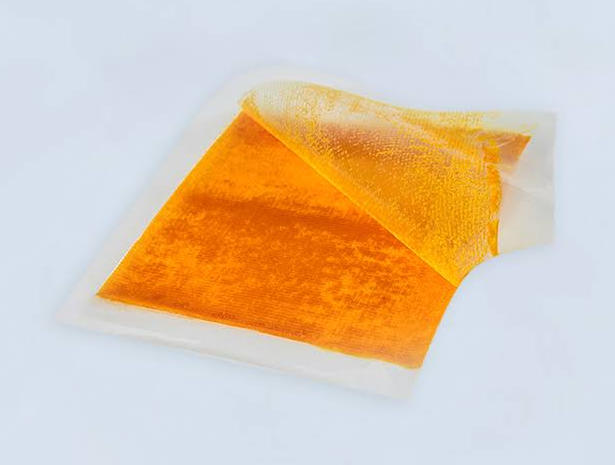

Dressing Specifications: 100x100mm; Gauze 60x60mm

Packaging Pouch Specifications: 160x140mm (reference)

PU Film Tape Specifications: OD ≤350mm, Width ≤120mm, Core ID 76.2mm

Release Paper Specifications: OD ≤350mm, Width 80mm, Core ID 76.2mm

Production Capacity: 0–10 pouches/min (1 piece per pouch); determined by gauze drying speed.

Power Supply: 220V, 50Hz

Power Rating: Motor 7.5kw; Heating 10kw
