Glue pressing forming adopts an upper and lower flat pressing mold, with reciprocating operation and continuous
feeding production. Nonwoven fabrics are not easily deformed, and the glue pressing thickness is uniform, and the
product is flat and beautiful.
Features：
1. The unwinding of non-woven fabric adopts a constant tension system, which does not affect the unwinding
tension whether the nonwoven fabric is large or small, and does not deform when using elastic non-woven fabric for
production.
2. Servo driven automatic splicing system: automatic conveying of feeding plates, automatic splicing, and automatic
conveying after splicing.
3. Advanced control system: The whole machine adopts 5 shaft servo drive, color touch screen operation interface,
and PLC control.Coating, traction, flat pressing forming, and slicing all adopt servo drive technology, resulting in high product accuracy and stable operation.
4. Unique spiral cutter for cross cutting, durable and easy to adjust.Main Data:
Name:New Model Hydrogel Coating Machine
Model: PPD-CCM500

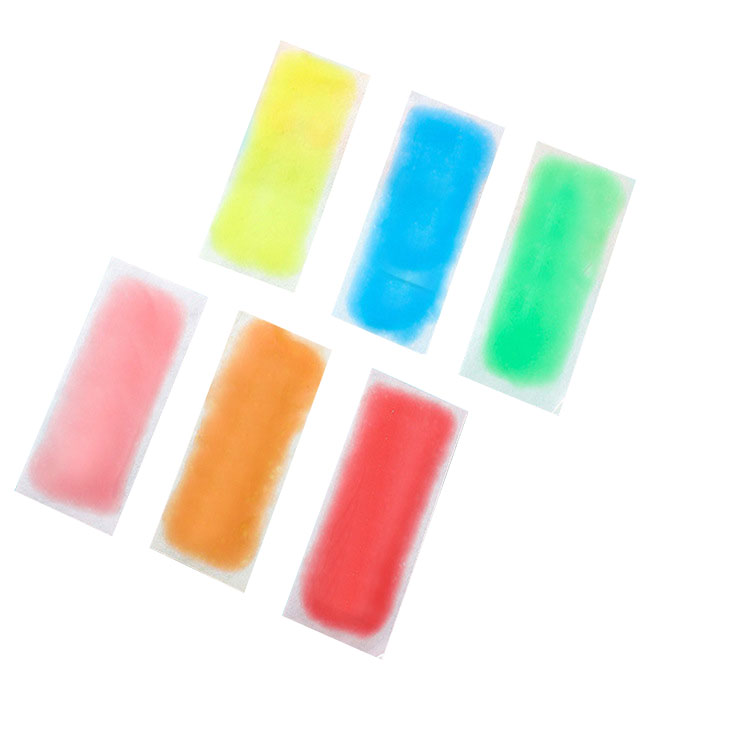

Finished product size: 120x50mm or as customized
Coating width: max500mm
Nonwoven fabrics and packing film size: width ≤ 350mm, OD≤ 400mm, ID:76mm
Processing capacity: max400pcs/min
Total power: 220V, 50Hz, 4 kw
Air pressure: 0.6-0.8Mpa
Weight: 850 kgs
Packing size: L:3500xW:1400xH:1800mm
