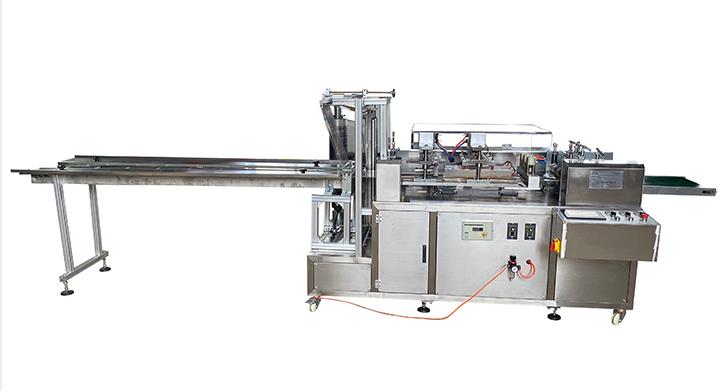

Four side seal SARS-COV-2 antigen rapid test packaging machine is mainly design for self testing of SARS-COV-2
antigen.
Machine is with 2 lanes production，the whole machine is equipped with XINJE servo motor，which is simple,
safe and reliable to control text writing by touch screen to adjust parameters.
Features：
1. Reciprocating heat sealing mechanism, with sufficient time for large-area sealing, strong sealing, smooth, firm
and beautiful sealing; And meet a variety of materials sealed packaging.
2. Automatically correct deviation, through two cursor point tracking, automatic calibration, automatic generation
of safety and stability.
3. It can be make various specifications of packaging, convenient and fast mold switching, wide applicability, strong
compatibility.
Main Data:
Name:Four Side Seal SARS-COV-2 Antigen Rapid Test Packaging Machine
Model:PPD-SCTP80
Film width:Max.350mm
Bag size: L:80mm × W:60 mm or as customized
Product’s height:Max.10mm
Packing speed:40-80 bags/min
Voltage:220V 50Hz
Total power: motor 2.2kw, heating 3.3kw
Air supply: 0.6-0.8Mpa
