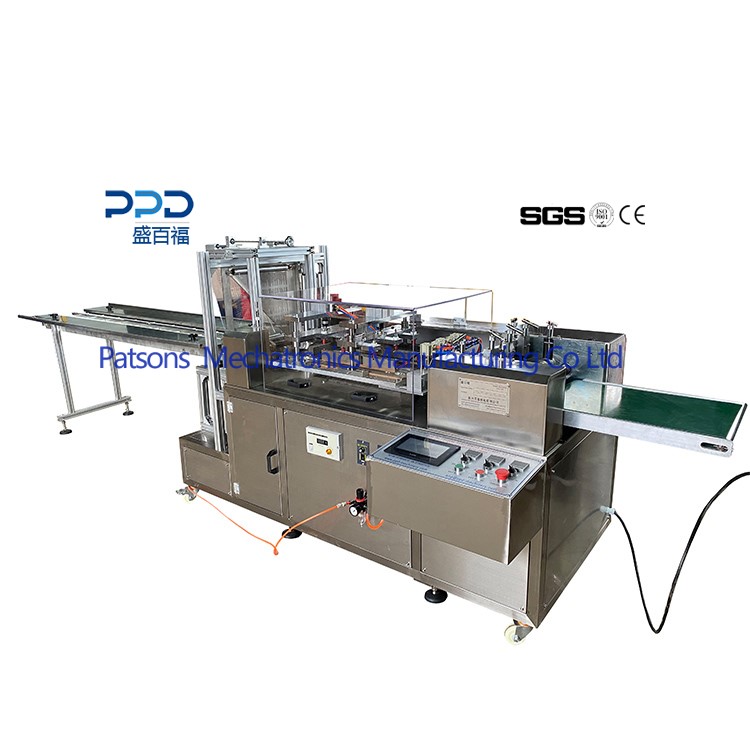

Four Side Seal Pregnancy Test Packaging Machine
Four side seal pregnancy test packaging machine is specially designed for packaging of pharmaceutical products

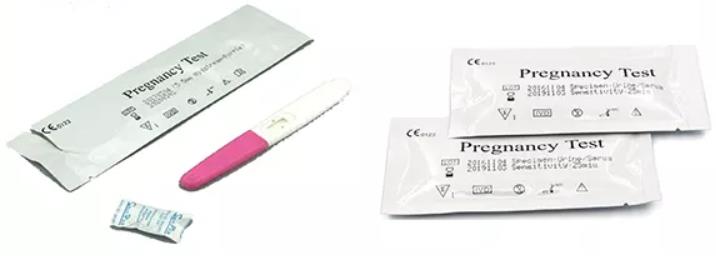

such as pregnancy test kit, drug kit and blood test kit etc.
Features：
1. Programmable control: PLC programmable controller and servo motor are used to program the whole machine.
2. Touch screen display: host speed, set bag length, actual bag length, output will be displayed on the screen,
at a glance.
3.Photoelectric detection color code , controlled by PLC computer program in combination with servo motor ,
automatic tracking.
4. The packing efficiency is high. Stable performance.5. Easy operation and maintenance.
6. Machine can run continuously for a long time.
7. The shell is made of all stainless steel, prolonging the service life
Technical Data:
Name:Four Side Seal Pregnancy Test Packaging Machine
Model:PPD-PTP80
Bag size:180x60mm(LxW) or as customized.
Packaging materials: PE/OPP, PE/PET paper film, aluminized film, aluminum film and other composite film.
Packaging film size:OD≤350mm
Packing speed:40-80pc/min
Voltage:220V,50hz
Power:5.5kw,motor 2.2kw heating 3.3kw
Air supply: 0.6-1.0Mpa
