Automatic vaseline gauze pad packaging machine adopts color touch screen operation interface operation,
PLC programmable controller intelligently controls the operation of the whole machine, automatically infiltrates
vaseline gauze, paraffin gauze into petroleum jelly or paraffin, and then automatically packs them into bags.
The whole machine has a high degree of automation, simple operation and convenient use.Features:
1. Herringbone bag shape, easy to tear opening at the end, suitable for glued paper + transparent film
or glued paper + coated paper, etc.
2. The mold adopts precision template, CNC processing, and the sealed bag shape is processed at one time.
The sealing frame has good sealing performance and is easy to peel off.
Process flow:
Gauze roll, isolation paper roll, packaging roll film on machine → gauze impregnated with petroleum jelly
→ up and down paper → cutting → gauze sheet output, bag feeding → bag making → packaging →
sealing → output of the final products
Main Data:

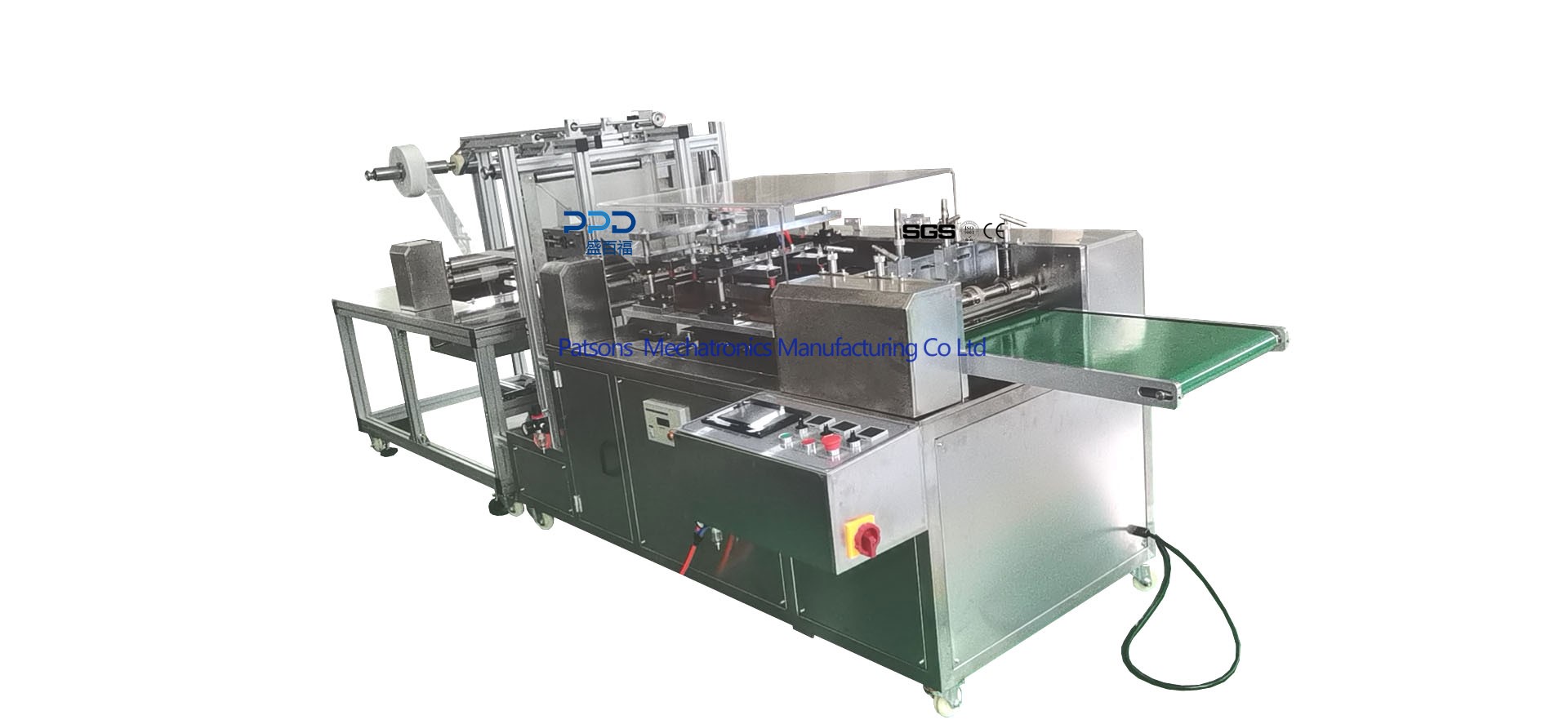

Name:Automatic Vaseline Gauze Pad Packing Machine
Model: PPD-VGPM50
Gauze pad size: 100x100mm or customized size
Packing bag size: 150x160mm or customized size
Packaging material: coated paper + coated paper, coated paper + composite transparent film etc, OD≤350 mm, width:150 mm, ID: 76.2mm
Suitable gauze:,20-40g/㎡ gauze roll,OD ≤600mm, width 100 mm
Production speed: 30-50 bags/min
Voltage: 220V, 50hz
Power: 5 kw
