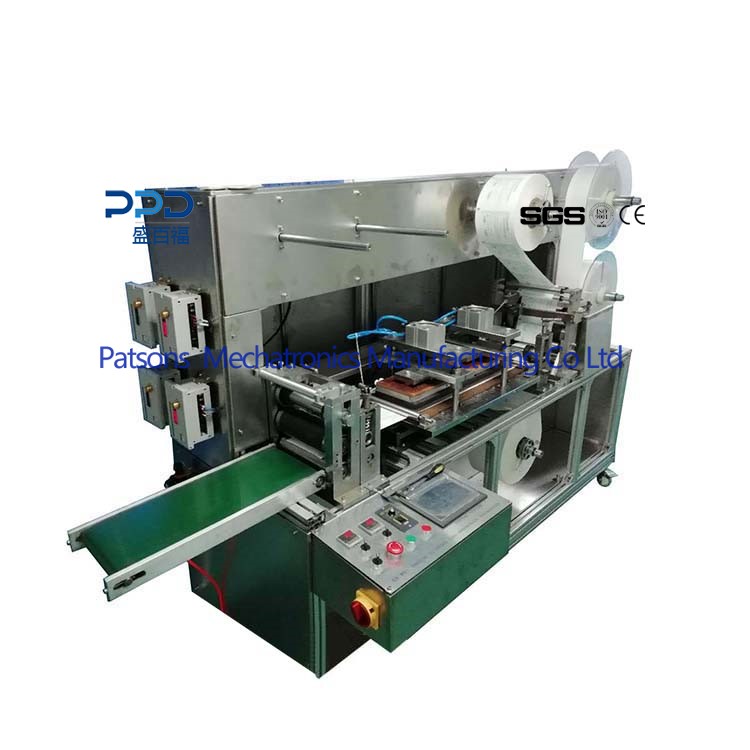

Automatic surgical dressing making machine adopts continuous rolling cutting, compounding, forming cutting
and automatic packaging of tape + cotton + release paper.

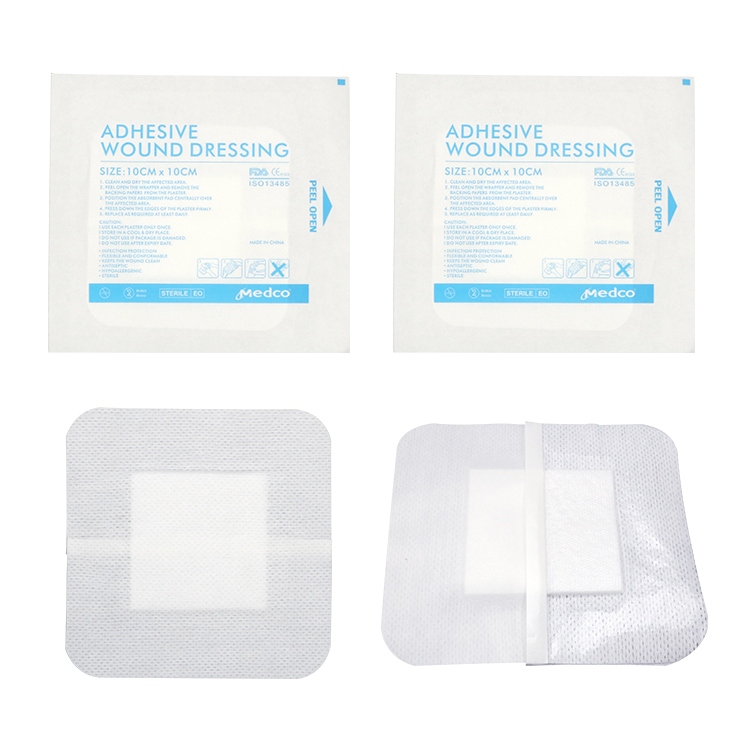

This machine is suitable for processing and packaging non-woven dressings, PU waterproof dressings,
wound dressings, self-adhesive sterile dressings and other dressing products.
Features:
1. Machine is based on advanced servo technology, PLC programmable controller intelligently controls
the operation of the whole machine. It has the advantages of precise paste making, film feeding, stable
transmission of materials, and precise bag cutting.
2. Double-packing material unwinding rack, suitable for paper+film, paper+paper bag making.3. Independent guide pillar mold base, mobile synchronous heat sealing system, the temperature of the
sealing surface is more uniform and stable, and the instant sealing effect is better.
Process flow:
Adhesive tape on the machine → tape covered paper peeling → absorbent pad roll cutting →
pasting to the tape → left and right release paper folding compound → roll cutting forming →
application into the bag → automatic bag making, sealing and packaging → output of finished products
Technical parameter:
Name: Automatic Surgical Dressing Making Machine
Model: PPD-MWDM80
Application specifications: 300x100mm or as customized
Packing bag specifications: 350x150mm or as customized
Backing tape specifications: Φ≤400mm, width ≤350mm, inner diameter of paper core 76.2mm
Processing capacity: 60-80 bags/min (1 piece per bag)
Total power: 220V, 50HZ, 6KW
