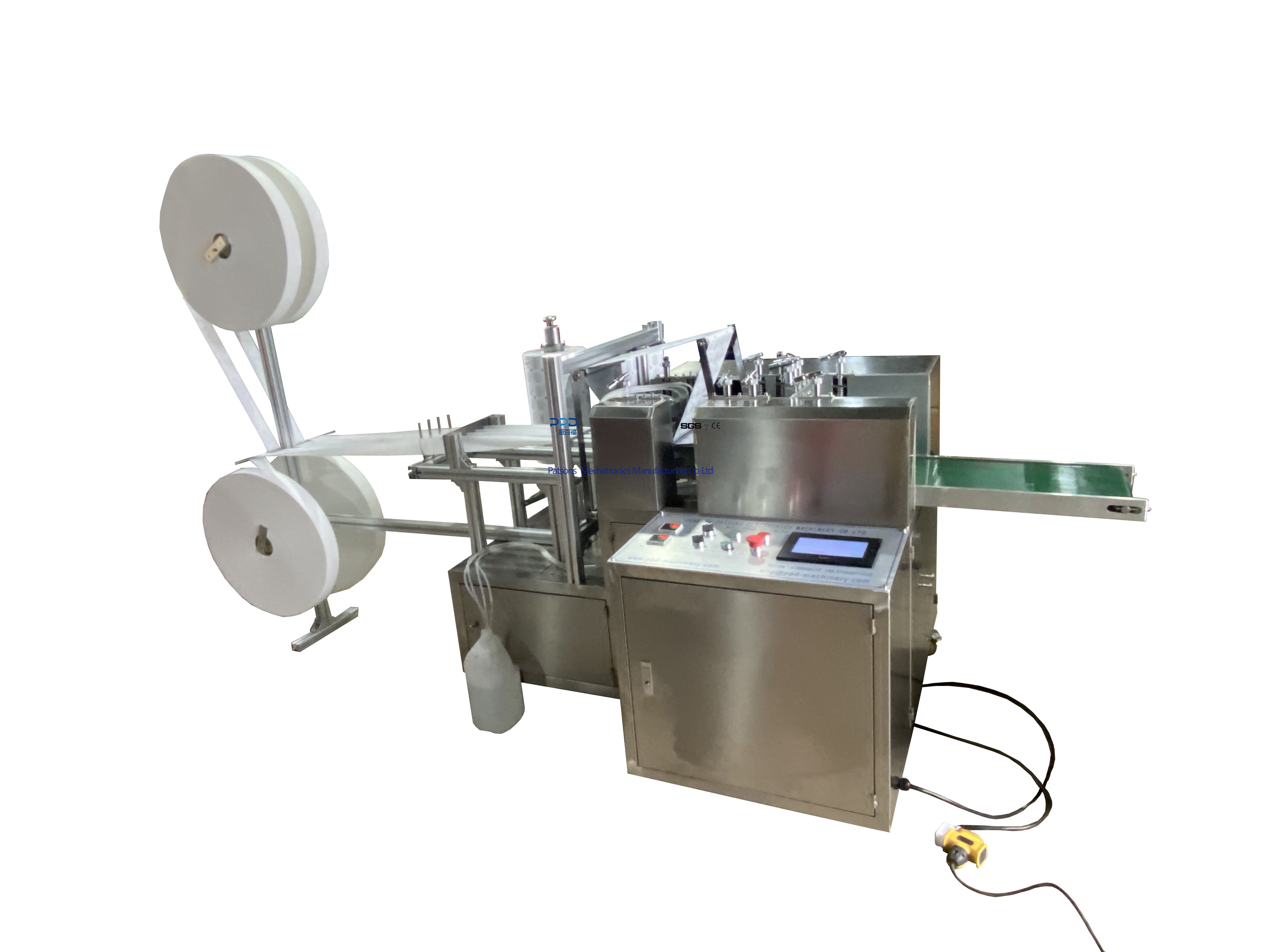

Automatic Screen Cleaning Wipes Machine

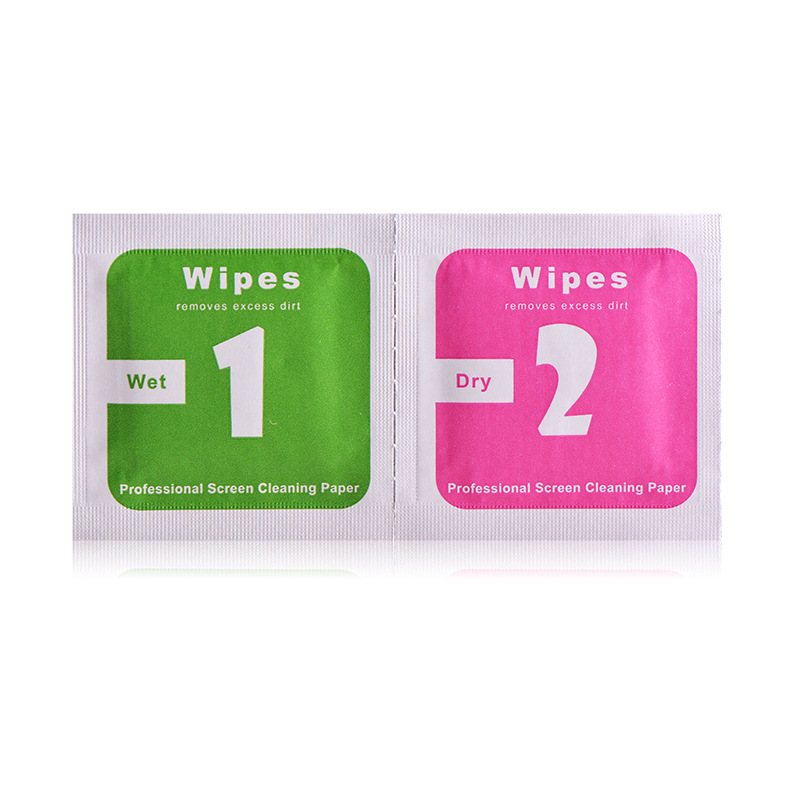

Automatic screen cleaning wipes machine is specially for packing four side seal cleaning pad,like alcohol pad,alcohol
prep pad,alcohol swabs,nail removeer pad,lens cleaning wipes,glasses cleansing wipes,wet tissue,wet wipes etc.
Features:
1. PLC Control, touch screen operation, easy to set the parameters.
2. Temperature PID control, better to fit to all kinds of packing material.
3. High precision photoelectric eye color mark tracking, digital input sealing position, make the sealing and cutting
position more precise.
4.The drive system is simple, reliable and easy to maintain.5.The packing speed and liquid dosing capacity can be adjusted.
Main Data：
Name:Automatic Screen Cleaning Wipes Machine
Model:PPD-SCW280
Packaging form:Four side sealing
Suitable for packing film: 73-103g paper aluminum composite film
Suitable for nonwoven fabric:45-50g spunlace nonwoven
Inner diameter of packing materials:3inch（75mm）
Raw material diameter of nonwoven fabric:max600mm
Packaging film raw material diamter:max400mm
Width of nonwoven fabric:60mm
Pad size (unfold):L60mm x W30mm
Pad size (fold ):L30mm x W30mm
Pad fold method:Fold once, 2 layers.
Sachet size:L50mm x W50mm
Production capacity:240-280 pcs/ min.
Voltage: 220v，50/60hz,1ph
Power:2.5kw
Air compressor:No need
