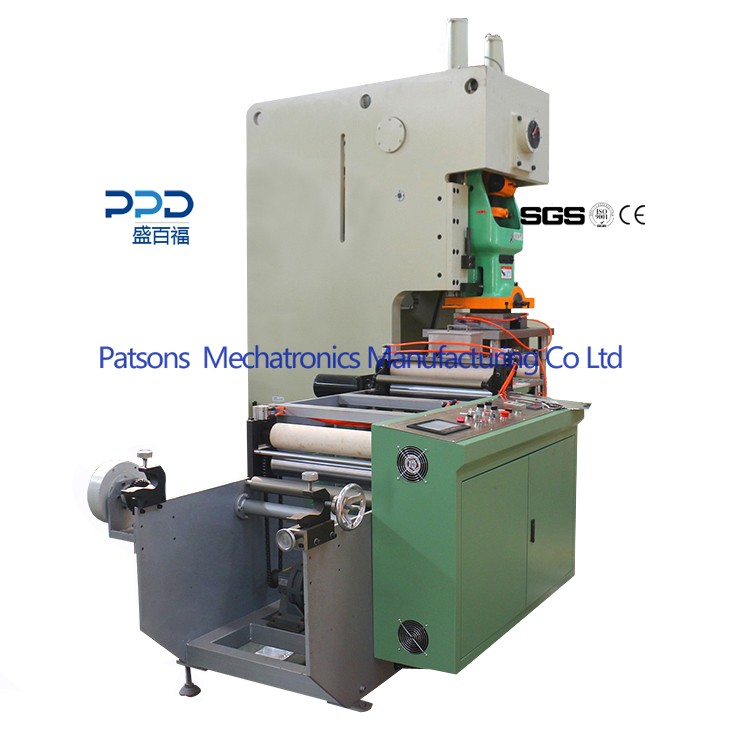

Aluminium Foil Dish Machine
Aluminium foil dish machine is a complete production line of manufacturing the aluminium foil container,aluminium foil lunch box,aluminium foil tray,aluminium foil plates etc.
It is include auto feeder,punching machine,receiving table and punching mold,the mold can do customized size.

Production Steps:

Feeding material------Punching by the press------Collecting product by the receiving talbe-----Aluminium foil dish




PPD-25

PPD-45

PPD-63

Capacity

KN

250

450

630

Nominal Stroke

mm

3

4

4

Slide Stroke

mm

80

10

120

SPM

Fixed

min-1

100

80

70

Variable

80-120

70-90

60-80

Max. Die Height

mm

250

270

300

Die Height Adjustment

mm

50

60

80

Between Slide Center & Frame

mm

210

230

300

Bolster (FB×LR)

mm

400×700

440×810

580×900

Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.)

mm

φ170×20

×φ150

φ180×30

×φ160

φ200×40

×φ180

Bolster Thickness

mm

80

110

110

Bolster Opening (Dia./FB×LR)

mm

260×250

300×300

390×460

Slide Area (FB×LR)

mm

300×360

340×410

400×480

Shank Hole (Dia.×Dpth)

mm

φ40×60

φ40×60

φ50×80

Between Columns

mm

450

550

560

Main Motor Power

kW

3

5.5

5.5

Outline Size (FB×LR×H)

mm

1300×1050

×2050

1390×1200

×2400

1580×1210

×2520

Net Weight

kg

2600

3450

5400
