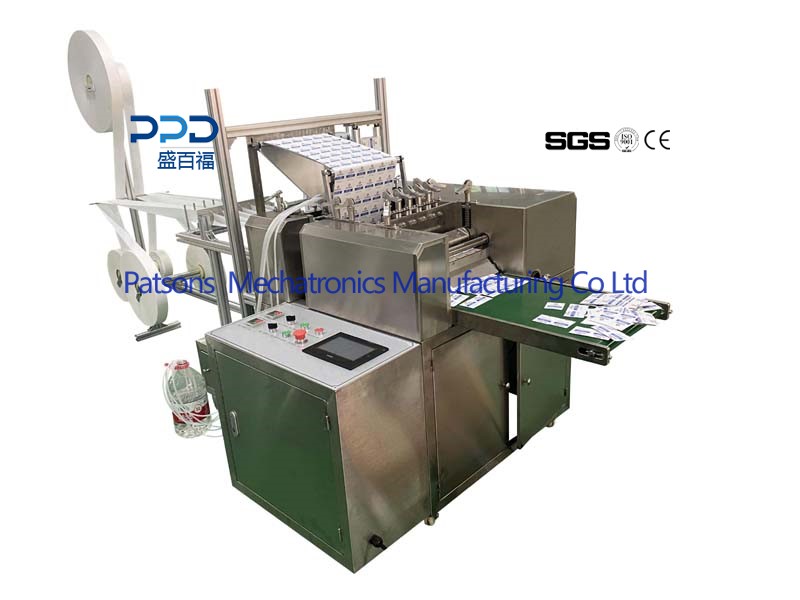

Alcohol pad manufacturing machine is specialized equipment used to manufacture individually packaged alcohol pad,alcohol prep pad,alcohol swabs,alcohol wipes,nail remover pad,screen cleaning wipes etc,
which can automate the entire manufacturing process from raw material to finished product.
Machine works with 6 lanes,touch screen and PLC control,more stable and high production.
Features：
1.Automatic feeding: Pre-cut non-woven fabric sheets are fed into the packaging station in an orderly manner.
2.Automatic liquid addition: Liquid is precisely added to the non-woven fabric sheets to ensure the correct quantity per bag.
3.Automatic bag making and sealing: Bag making, longitudinal sealing, and transverse sealing are automatically performed using film rolls.
4.Automatic feeding and packaging: The liquid-added non-woven fabric is fed into the prepared packaging bags and the final seal is completed.
5.Product output: The sealed finished bags are automatically cut and output.

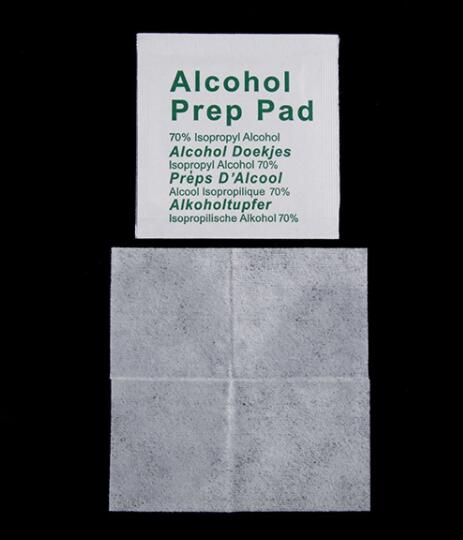

6.Alcohol pad size: Nownoven unfold size:6*6cm,Nonwoven folded size:3*3cm,Sachet size：5*5cm.
Main Data:
Name:Alcohol Pad Manufacturing Machine
Model:PPD-6L540-60MM
Unfold size: 60*60mm
Folded size:30*30mm
Bag size: 50*50mm
Packing speed:480-540 packs/min
Motor power: 1.1kw
Heating power:3.5kw
Total installed capacity (total power):5kw
Voltage: 220V,50hz
NOTE:Different specs can be customized.
